Telescopic Spring Covers
Our Telescopic Spring Covers are leading products for almost twenty years if you are looking for protection of your ball screws, columns, spindles and shafts you can consider using our Telescopic spring covers. They reduce the accident risk and increase the precision of your machines and their life. Spiral springs can be used in connection with all cutting and non-cutting machines. Telescopic Spring Covers are made of high quality hardened steel band with special hard wearing features due to our specialized method of finishing.
 |  |
Telescopic Spring Covers - Technical Specifications

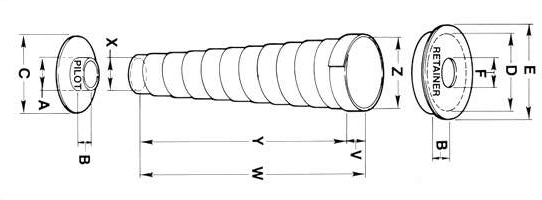

They are spirally wound and produced in the diameters and lengths shown in the tables. Varying band widths ensure a perfect functioning for the various stroke paths, Telescopic spring covers achieve extremely good seal between the single coils in any position. The coils are attached as shown by means of simple centering flanges which allow the coil turning movement. The flanges are not included in delivery. If requested, please give us detailed information about the intended mounting situation. In the case of vertical installation it is recommended that the greatest diameter is at the upper end, and when used horizontally in the direction shavings occur. No maintenance is required. Cleaning is recommended depending on the amount of soiling due to the application of a light film of oil.
For technical reasons, when ordering or inquiring it should be stated whether the flat Telescopic Spring Covers are to be installed vertically or horizontally. Please note the different extension lengths for vertical or horizontal types. We guarantee through our long-term experience of more than twenty years, our exclusive and specially developed machines and highest material requirements, you will receive reliable, affordable and perfectly performing spiral springs.
We offer a wide range of sizes and different materials. Most telescopic spring covers can be also delivered in stainless steel quality (non-rusting), perfect for applications with water and humidity influence. All our spiral springs are customized. Some types are available from stock. We have decided not to have an extensive stock in order to give you better prices. We can still offer you excellent delivery times. After receiving your order, it will be leaving our factory within two weeks.
SPIRAL SPRINGS customized + high quality + competitive prices + short delivery + complete product range

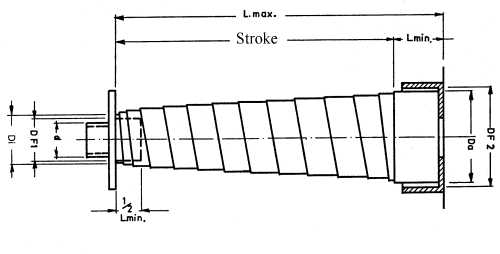

Standard types and dimensions Abbreviations:
dmax - Maximal Inner Diameter of covered part
Di - Inner diameter of spring
Da - Outer diameter of spring
Lmax horizontal - Maximal extension for horizontal application
Lmax vertical - Maximal extension for vertical application
Lmin - Minimal compression (=steel band width)
na - not available, ask for a customized solution
Telescopic Spring Covers

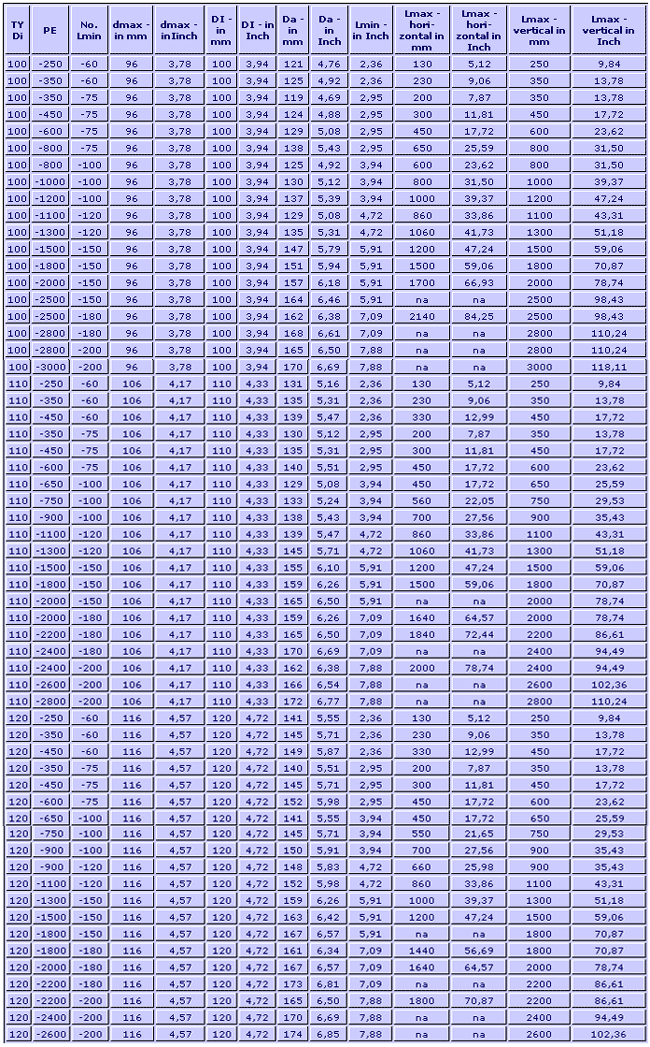

InnerDiameter 100 - 120
Telescopic Spring Covers

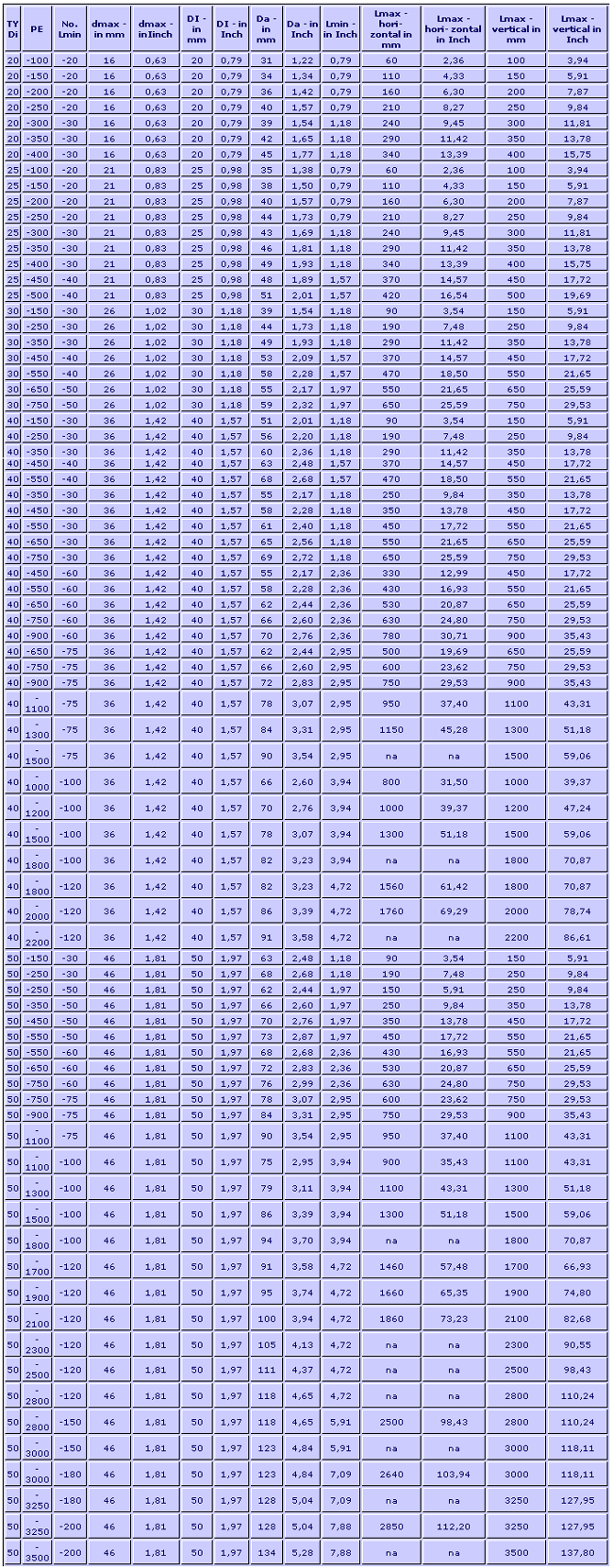

InnerDiameter 20 - 50
Telescopic Spring Covers

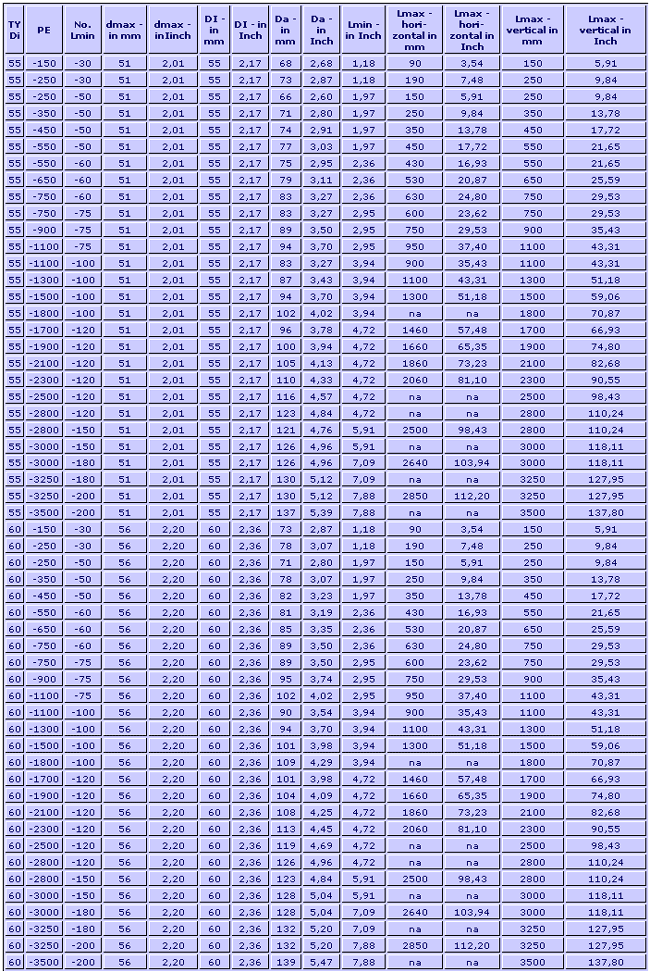

InnerDiameter 55 - 60
Telescopic Spring Covers
InnerDiameter 65 - 70
Telescopic Spring Covers
InnerDiameter 75 - 90
