Stitched construction are especially designed for ball screws, shafts, columns and spindles. Our Round bellows have a very stable form and stay perfectly in shape, which makes them suitable for long-term, highly  demanding applications.

Our special design guarantees maintenance free operations. Round bellows joints with flange and/or sleeve are possible. Please indicate the working application position (horizontal, vertical) and the spindle diameter.

The inner diameter of the concertina shall be 10 mm larger than the diameter of the protected  spindle  (shaft).

Standard material is GN 807 (high tensile strength chemical fiber tissue with PU-coating). Temperature resistant from -40^oC/14^oF to +120^oC/274^oF. For use at high temperatures and in an welding application, aluminized fiberglass tissue resistant up to +450^oC/870^oF is used.

Abbreviations

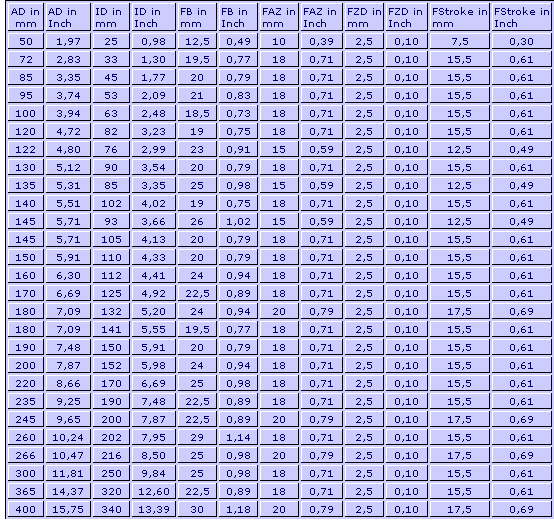

Dimensions standard types

Special dimensions upon request

Moulded Leather Bellows
Characteristics

We have one of the largest selections of Moulded Leather-Bellows in the world. We can currently offer 50.000 different types and styles. All bellows are made of a special composition of PVC-materials. These bellows can be used within a normal temperature range of -20^o;C//22^o;F and +80^oC/200^oF. They offer an excellent seal and protection against dust. We also manufacture soft pvc bellows according to your specifications. Die costs are moderate.

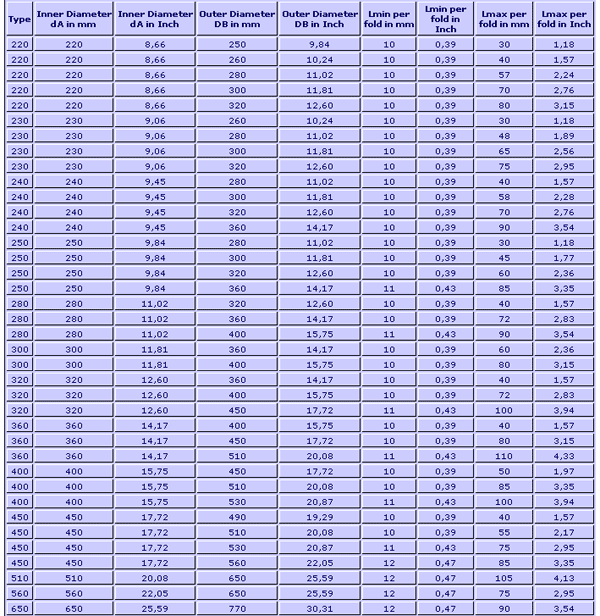

Following tables show the different types available

Sewn Round Bellows

Heat Formed Round Bellows

Thermic-Flex™ Round Bellow

Moulded Leather Bellows
Inner diameter 10 - 89

Moulded Leather Bellows

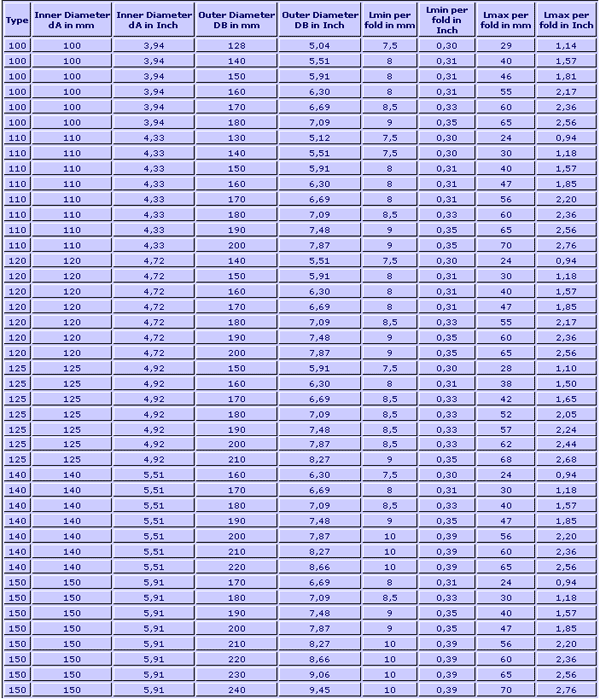

Inner diameter 100 - 150

Moulded Leather Bellows
Inner diameter 160 - 210
