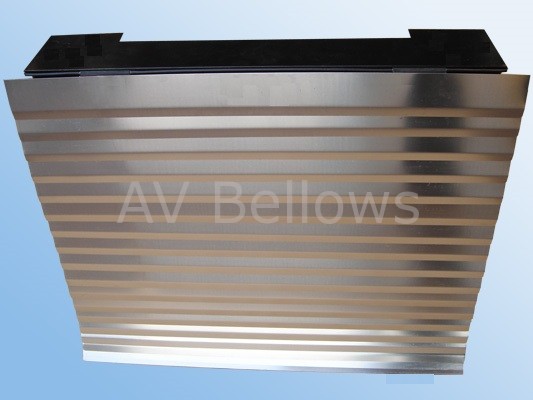

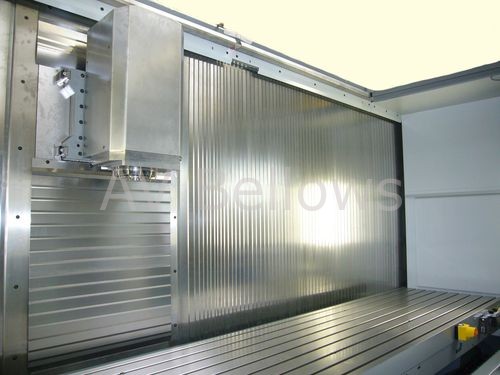

Clad Bellows

The Sword-F bellows are designed especially for horizontal application. The fixed mount stainless steel plates offer an excellent protection against all types of swarfs and chips. The front edge of the plates which prevents chip and swarf from getting inside. We are using different styles of mounting the plates onto the bellows. We are designing the right solution to your specification regarding size, travel speed and available space.

Clad Bellows

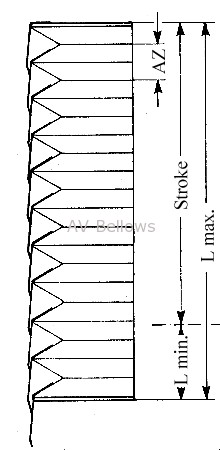

Clad Bellows Dimensions & Abbreviations:



Abbreviations:

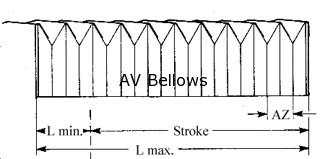

FB - Width of fold FZD - Compression per fold
FAZ - Extension per fold FStroke - FAZ-FZD (Lift per fold)

Dimensions
FB in mm (Inch) FAZ in mm (Inch) FZD in mm (Inch) X in mm (Inch) Y in mm (Inch)
17(0.67) 20(0.79) 4(0.16) 18(0.71) 40(1.57)
20(0.79) 25(0.98) 5(0.2) 18(0.71) 45(1.77)
25(0.98) 32(1.26) 5(0.2) 18(0.71) 50(1.97)
30(1.18) 35(1.38) 5(0.2) 20(0.79) 70(2.76)
35(1.38) 45(1.77) 5(0.2) 20(0.79) 75(2.95)
40(1.57) 60(2.36) 5(0.2) 20(0.79) 90(3.54)
45(1.77) 65(2.56) 5(0.2) 20(0.79) 95(3.74)

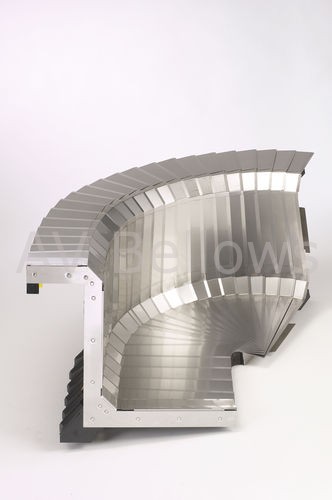

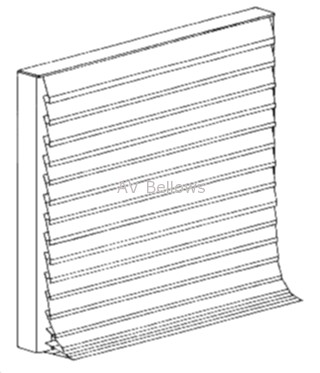

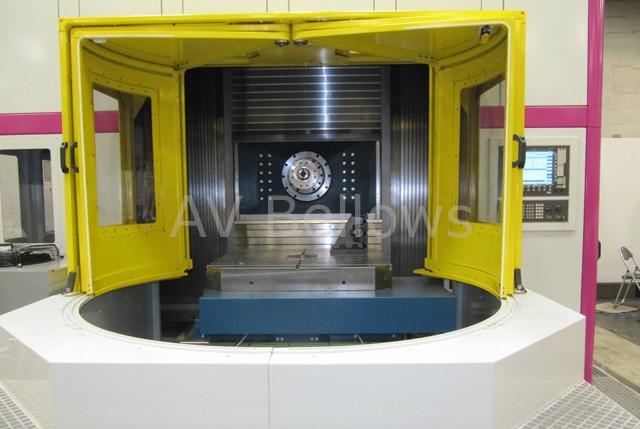

Sword-M Plated Bellows with flexible steel or aluminium plates on the front side

These Sword-M bellows are designed for vertical applications, but they are mostly used in vertical positions. The mounted stainless steel or aluminium plates offer an excellent protection against all types of chips and swarfs.

Sword-M bellows

We recommend to use the Sword Plated Bellows for the following applications

  • Milling machines
  • Boring machines
  • Machining centers
  • Woodworking machines
  • Engraving machines

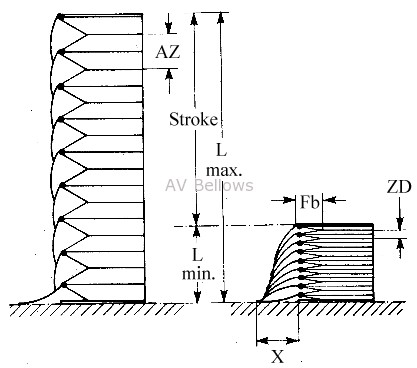

Technical Data

Sword-M bellows

Abbreviations:

FB - Width of fold FZD - Compression per fold

Dimensions
FB in mm (Inch) FAZ in mm (Inch) FZD in mm (Inch) X in mm (Inch)
15(0.59) 20(0.79) 4(0.16) 55(2.21)
17(0.67) 22(0.87) 4(0.16) 55(2.21)
20(0.79) 27(1.06) 5(0.2) 55(2.21)
25(0.98) 38(1.50) 5(0.2) 80(3.15)
30(1.18) 45(1.77) 5(0.2) 80(3.15)
35(1.38) 50(1.97) 5(0.2) 80(3.15)
40(1.57) 60(2.36) 5(0.2) 80(3.15)

We are using different ways of mounting the plates onto the bellows.One such example is special spring-loaded plates which return automatically in their original position. This gives a closed surface and reliable prtection. Other types even allow an easy replacement of single thus reducing maintenance and repair costs. The maximum width of a single plate on Sword-M is 85 mm/3.35 Inch.

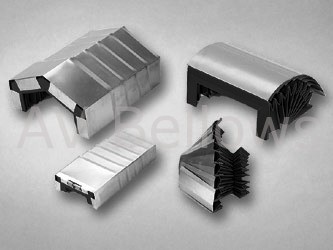

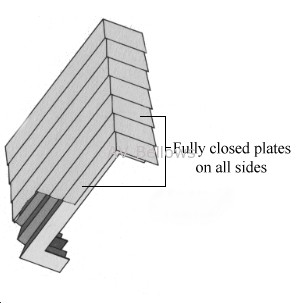

Sword-C Plated Bellows with completely fixed closed steel plates on all side

The Sword-c Plated Bellows was developed as an alternative for a telescopic steel way cover for vertical applications. Through its unique design, offering full protection on all sides,Sword-C can be used as a cover.

Sword-c Plated Bellows

The main advantages for the Sword-C Bellows are

  • Fast delivery in four to six weeks
  • Competitive prices
  • Low weight and travel speed of 30 Meters/1.2 Inch per Minute

These Advantages makes it worth thinking about replacing a steel way cover

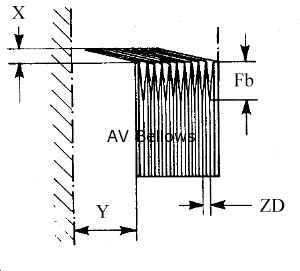

Technical Data

Abbreviations:

FB - Width of fold ZD - Compression per fold

Dimensions
FB in mm (Inch) FAZ in mm (Inch) FZD in mm (Inch) X in mm (Inch) Y in mm (Inch)
20(0.79) 25(0.98) 5(0.2) 18(0.71) 70(2.76)
25(0.98) 32(1.26) 5(0.2) 18(0.71) 75(2.95)
30(1.18) 35(1.38) 5(0.2) 20(0.79) 75(2.95)
35(1.38) 45(1.77) 5(0.2) 20(0.79) 90(3.72)
40(1.57) 60(2.36) 5(0.2) 20(0.79) 115(4.53)
45(1.77) 65(2.56) 5(0.2) 20(0.79) 120(4.72)

FastLap Plated apron with flexible steel or aluminium plates on the front side

Plated aprons can be used on nearly all machine tools for covering the Z-axis. For any of these application as well as in protective cabins, it offers an effective and long lasting protection against continuous chip, coolant or spark flow. For mounting and installing the FastLap plated apron a guiding system is required.Additional space for the guides is necessary(see drawing). We help you to use the existing guides or design a new solution with you.

Fastlap Plated aprons
Plated aprons

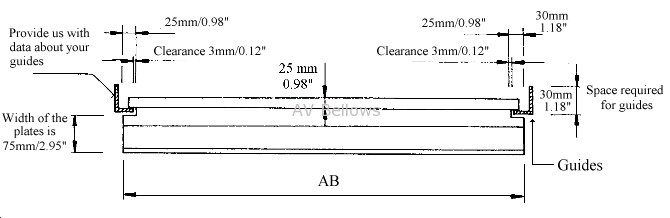

Mounting and requirement for guiding system

Plated aprons

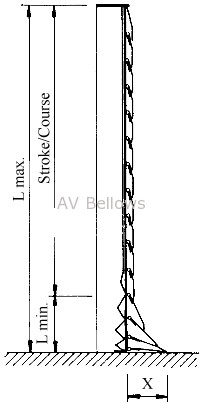

Abbreviations:

Lmax-Maximal Total extension Lmin-Minimal Total Compression
X-Horizontal space required for plates AB-Width of the plates
